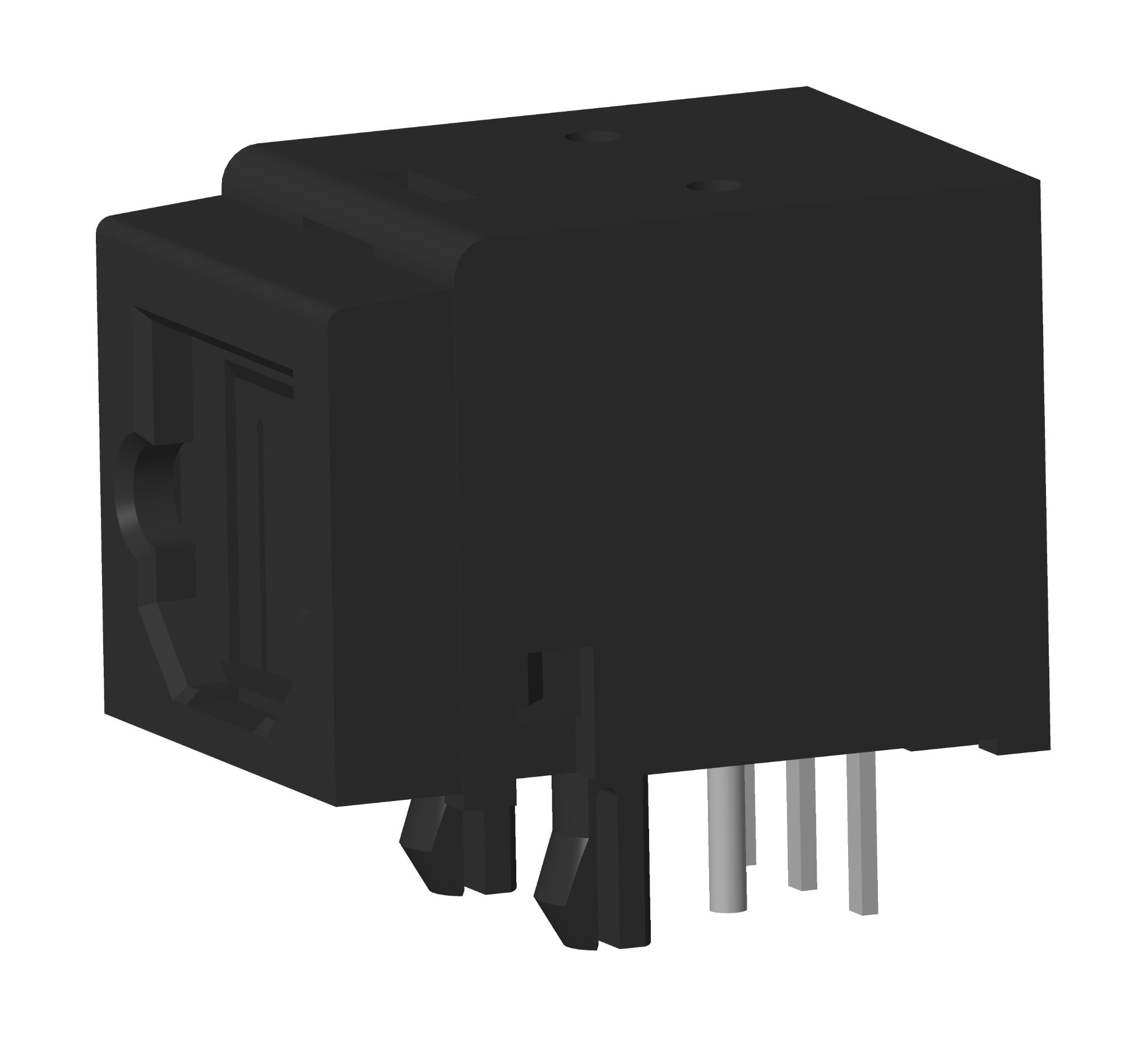

光釺插座/光釺母座

額定電流：5mA

額定電壓：Vcc:2.7-5.5V

插入力：4.0kg

拔出力：0.6-6.0kg

使用次數：500次

發設器PIN脚定義：Pin1:GND/ Pin2:Vcc/ Pin3:Vin

接收器PIN脚定義：Pin1:Vout/ Pin2:GND/ Pin3:Vcc

包裝管道：盤裝

Optical socket/optical female socket

Rated current: 5mA

Rated voltage: Vcc: 2.7-5.5V

Insertion force: 4.0kg

Pulling force: 0.6-6.0kg

Usage: 500 times

Definition of PIN pins for the transmitter: Pin1: GND/Pin2: Vcc/Pin3: Vin

Receiver PIN Pin Definition: Pin1: Vout/Pin2: GND/Pin3: VCC

Packaging pipeline: coiled packaging
